Rad Power Bikes

RadWagon 5 (Metallic Blue)

$2,399.00
$2,399.00
Out Of Stock
Product Data
SKU:
102-00045
UPC/EAN:
850066859216
Description
Electric Cargo Bike

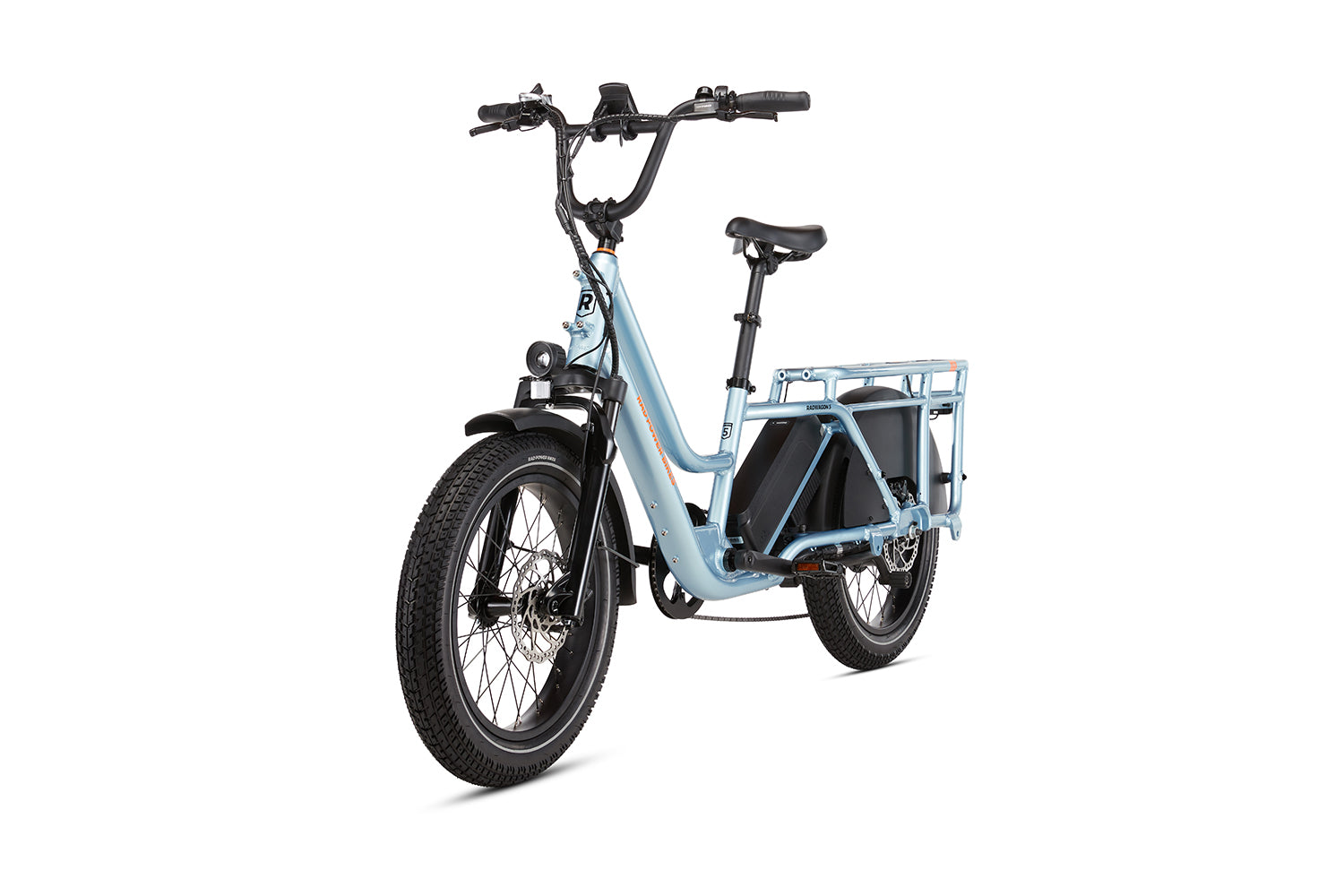

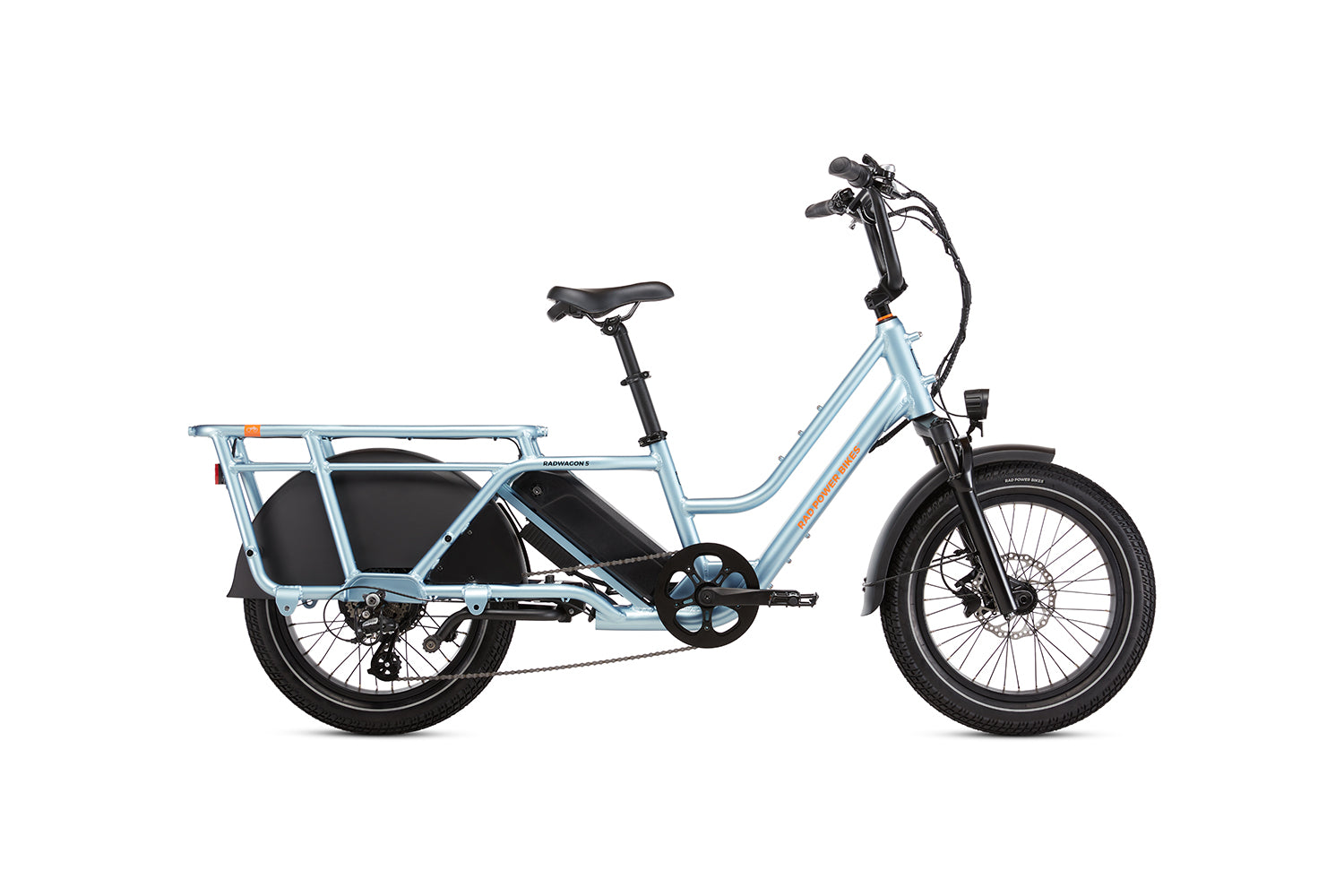

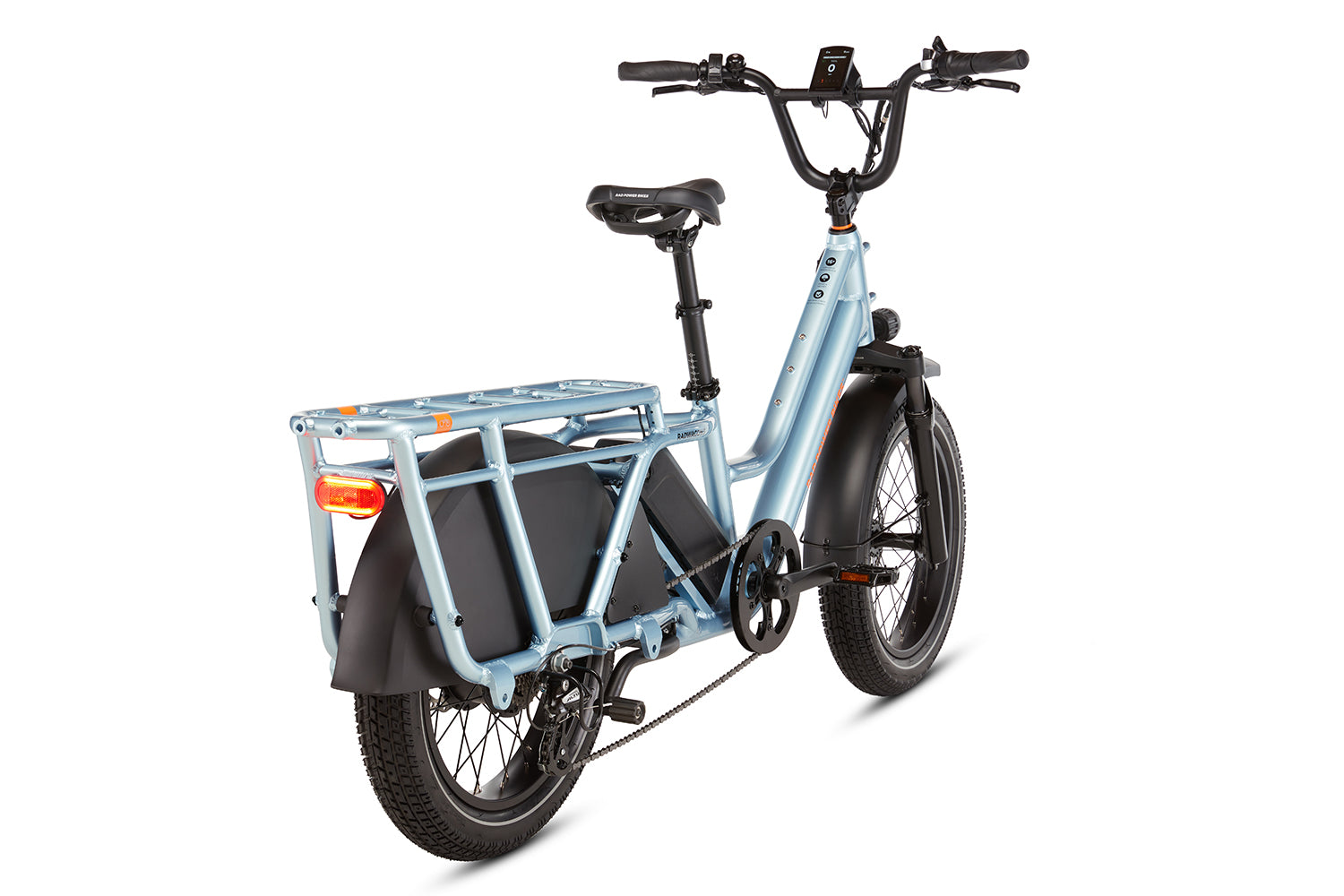

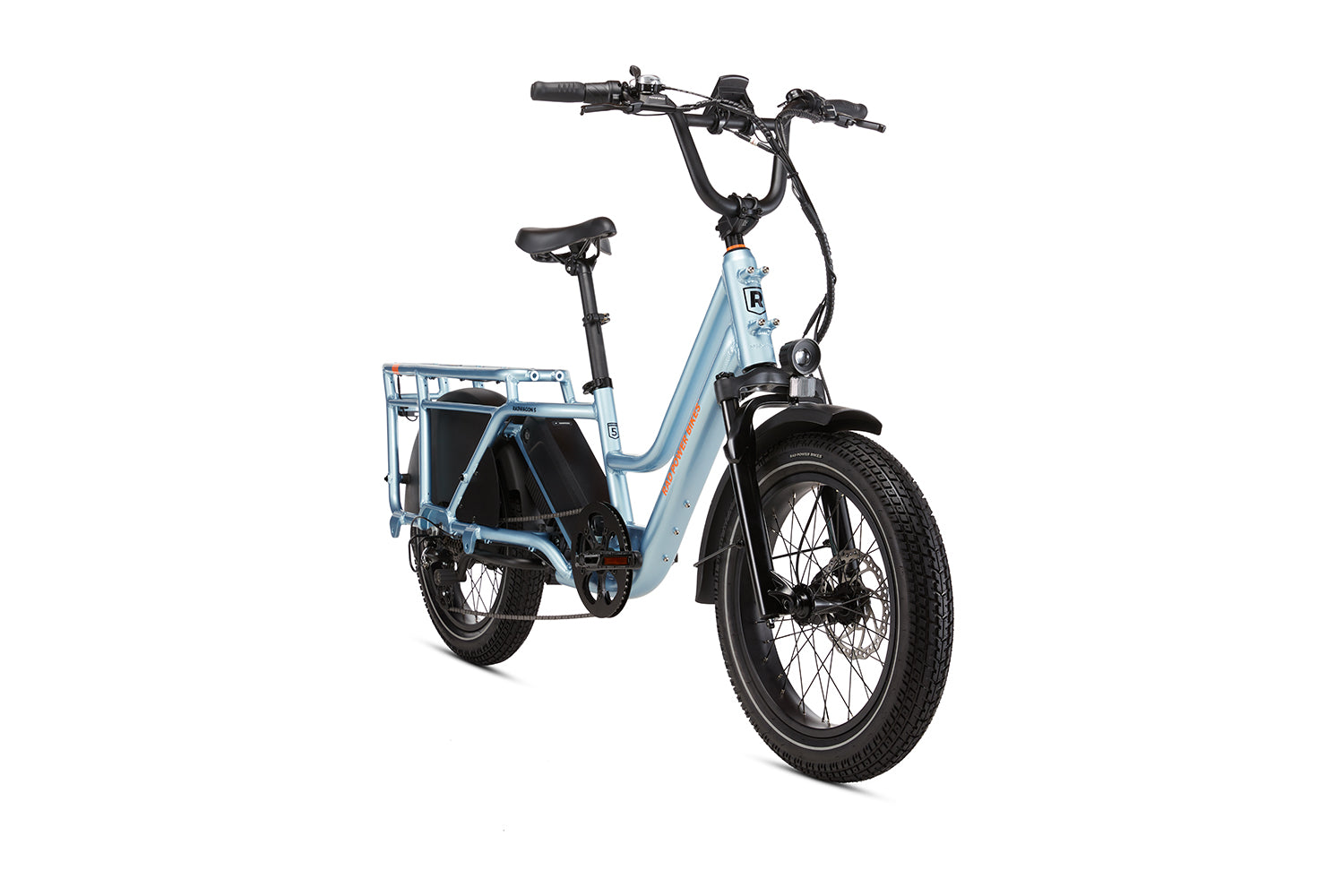

RadWagon 5

This is the first RadWagon to feature front suspension, hydraulic disc brakes, and class 3 capability. Ride easy with more hill-climbing torque, a condensed frame for extra-confident handling, and a whopping 375 lb. payload capacity to carry kids and cargo.

For riders 4'11"-6'3"

Electronics

  • Battery

    15Ah 720 Wh Safe Shield Advanced External Battery, Samsung 50GB or LG M50LT cells, UL Certified to UL-2271

  • Class

    Class switchable 1 to 3. Ships in Class 2 status.

  • Charger

    48VDC, 2 Amp Rad Power Bikes smart charger, operates on 100V-240V AC power outlets

  • Display

    Rad custom color display. See Display section below for details.

  • Hub Motor

    Rear hub 750W, 90 Nm
    Stated wattage is the manufacturer’s rated power capacity. Actual power-to-ground wattage is under 750W to ensure ebike regulatory compliance and may vary depending on riding conditions.

  • Lights

    Auto-on feature
    Front: ~200 lumens LED headlight with built-in reflector
    Rear: Integrated taillight with brake light and turn signals

  • Pedal Assist

    Torque sensor, 5 PAS Levels, plus a zero assist option

  • Range

    Estimated 20-60 miles per charge

  • Throttle

    Half twist throttle

  • USB Ports

    One USB-C port, located on display

Components

  • Bell

    Yes

  • Brake System

    Tektro Hydraulic Disc HD-E395

  • Brake Pads

    Tektro Semi-Metallic E11.11

  • Brake Rotors

    180 mm x 2.3mm

  • Crank Set

    50T with dual sided chain ring cover, 170mm crank arms

  • Derailleur

    7-speed Shimano

  • Fenders

    Full coverage front and rear, plus integrated wheel cover

  • Fork

    RST Guide suspension fork, 45mm travel, tapered steerer tube, thru axle

  • Frame

    Aluminum

  • Freewheel/Cassette

    7-speed freewheel, 11-34T

  • Gearing

    1x7 speed

  • Grips

    Ergonomic rubber comfort grips

  • Handlebar

    Aluminum, 680 mm wide

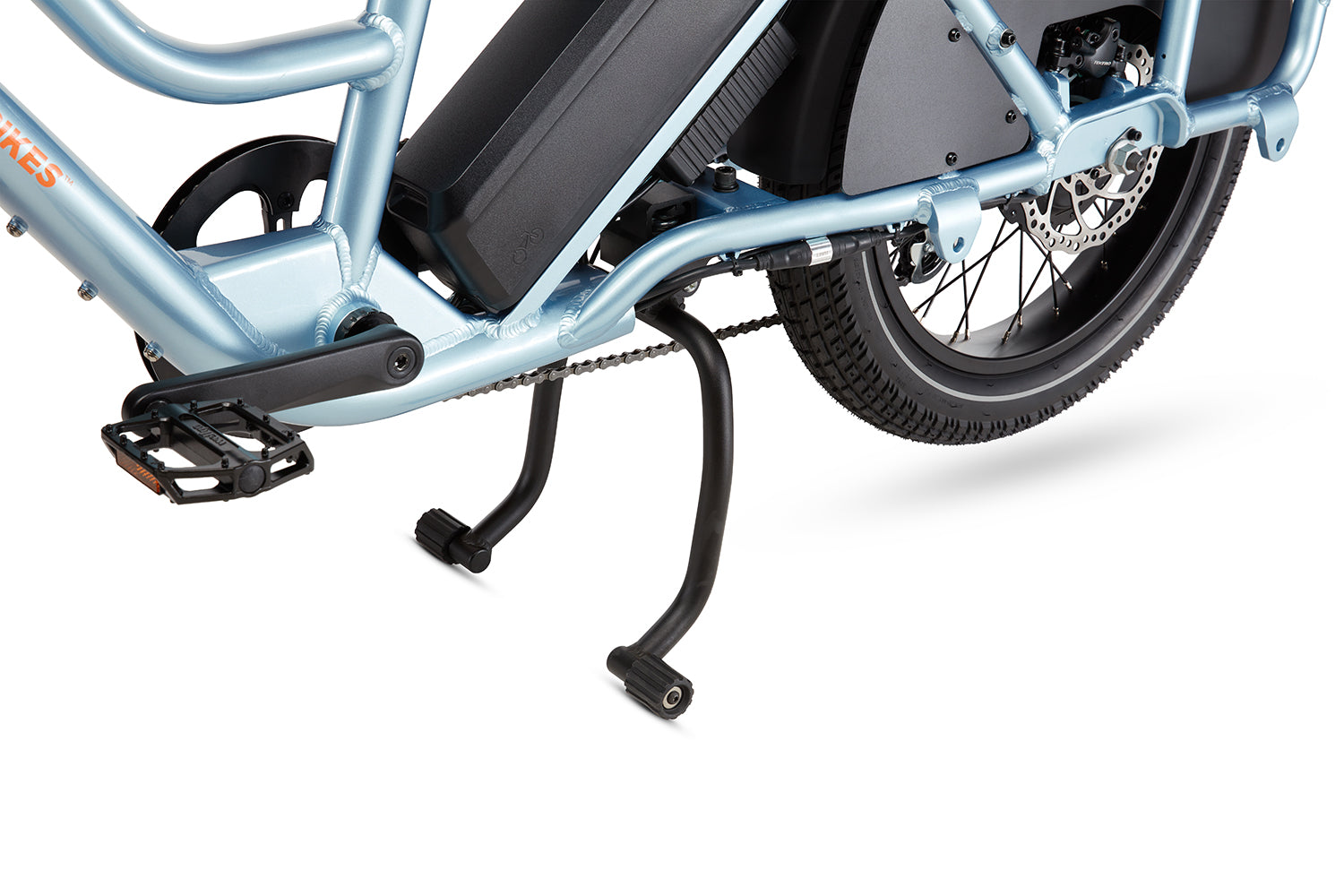

  • Kickstand

    Dual leg center stand, spring loaded, steel

  • Pedals

    Composite platform, CrMo axle with reflectors, standard 9/16" x 20 TPI threading

  • Rear Rack

    Integrated, 120 lb (54.4 kg) carrying capacity

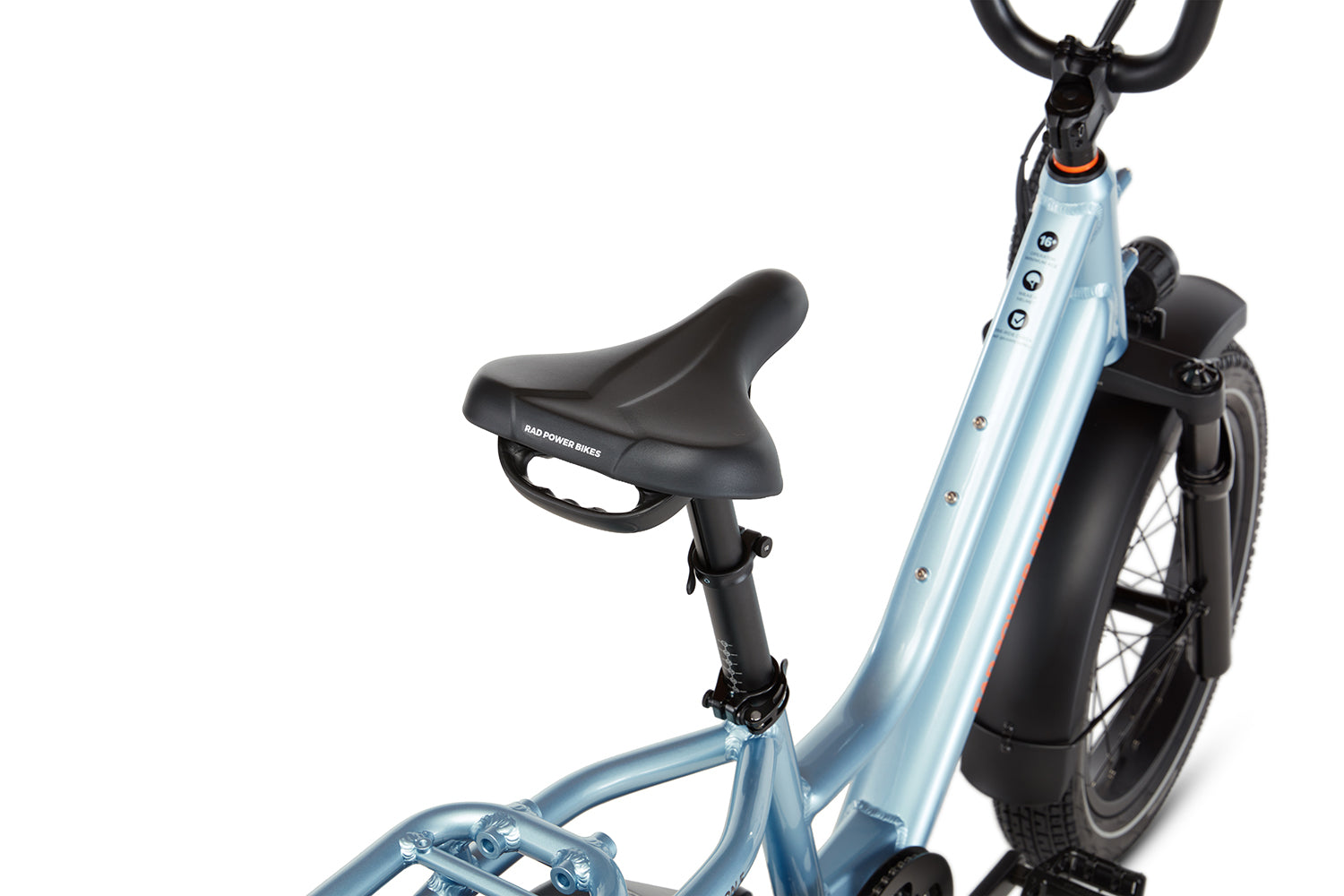

  • Saddle

    Padded flat touring saddle with shallow anatomic cut-out, wide contoured sides

  • Seatpost

    390 mm x 27.2 mm

  • Seatpost Clamp

    40 mm

  • Shifter

    Shimano, 7-speed thumb shifter

  • Stem

    35mm A-head

  • Tires

    Kenda 20" x 3.3"
