RadWagon 5 (Black)

This is the first RadWagon to feature front suspension, hydraulic disc brakes, and class 3 capability. Ride easy with more hill-climbing torque, a condensed frame for extra-confident handling, and a whopping 375 lb. payload capacity to carry kids and cargo.

For riders 4'11"-6'3"

Electronics

Battery

15Ah 720 Wh Safe Shield Advanced External Battery, Samsung 50GB or LG M50LT cells, UL Certified to UL-2271

Class

Class switchable 1 to 3. Ships in Class 2 status.

Charger

48VDC, 2 Amp Rad Power Bikes smart charger, operates on 100V-240V AC power outlets

Display

Rad custom color display. See Display section below for details.

Hub Motor

Rear hub 750W, 90 Nm
Stated wattage is the manufacturer’s rated power capacity. Actual power-to-ground wattage is under 750W to ensure ebike regulatory compliance and may vary depending on riding conditions.

Lights

Auto-on feature
Front: ~200 lumens LED headlight with built-in reflector

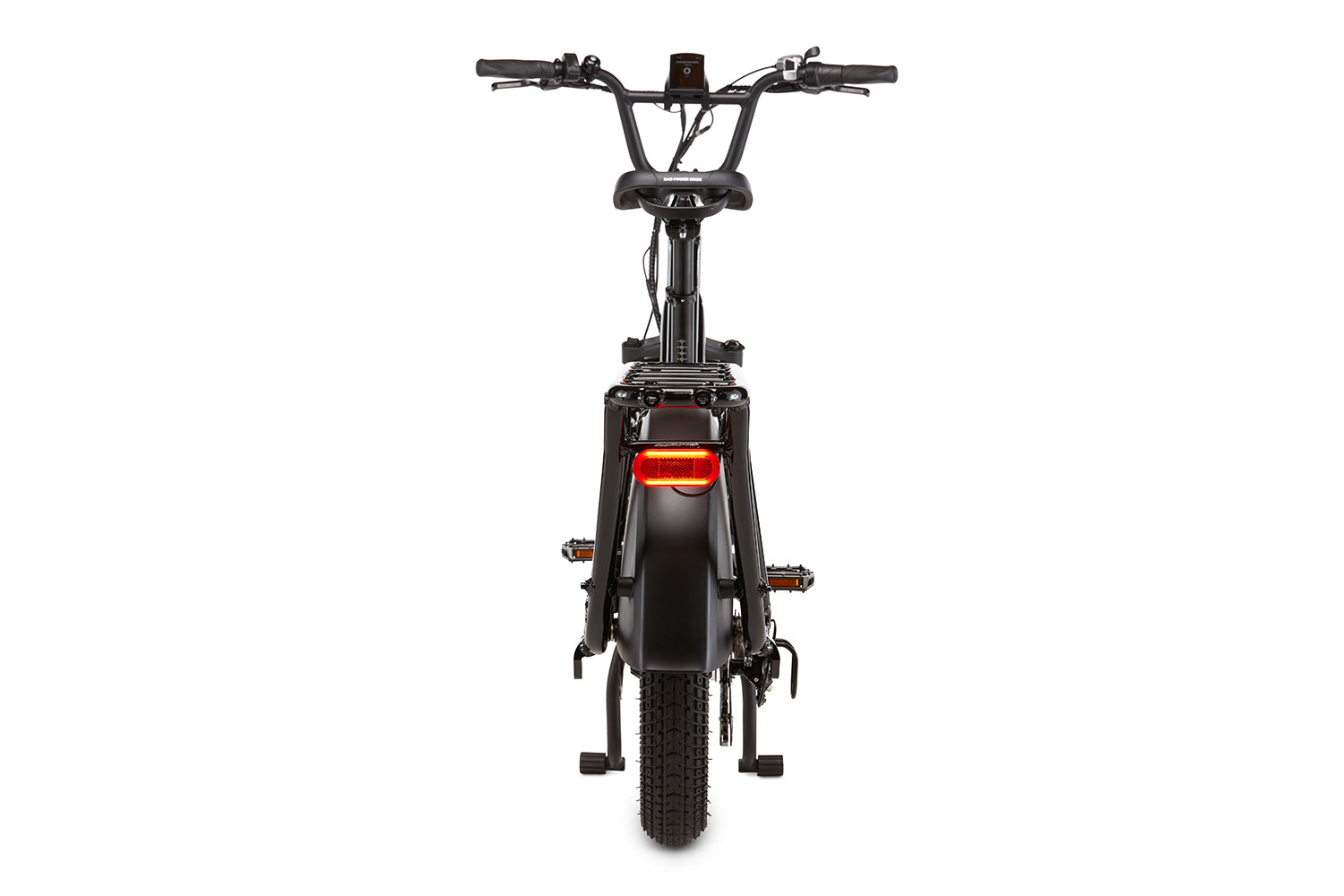

Rear: Integrated taillight with brake light and turn signals

Pedal Assist

Torque sensor, 5 PAS Levels, plus a zero assist option

Range

Estimated 20-60 miles per charge

Throttle

Half twist throttle

USB Ports

One USB-C port, located on display
