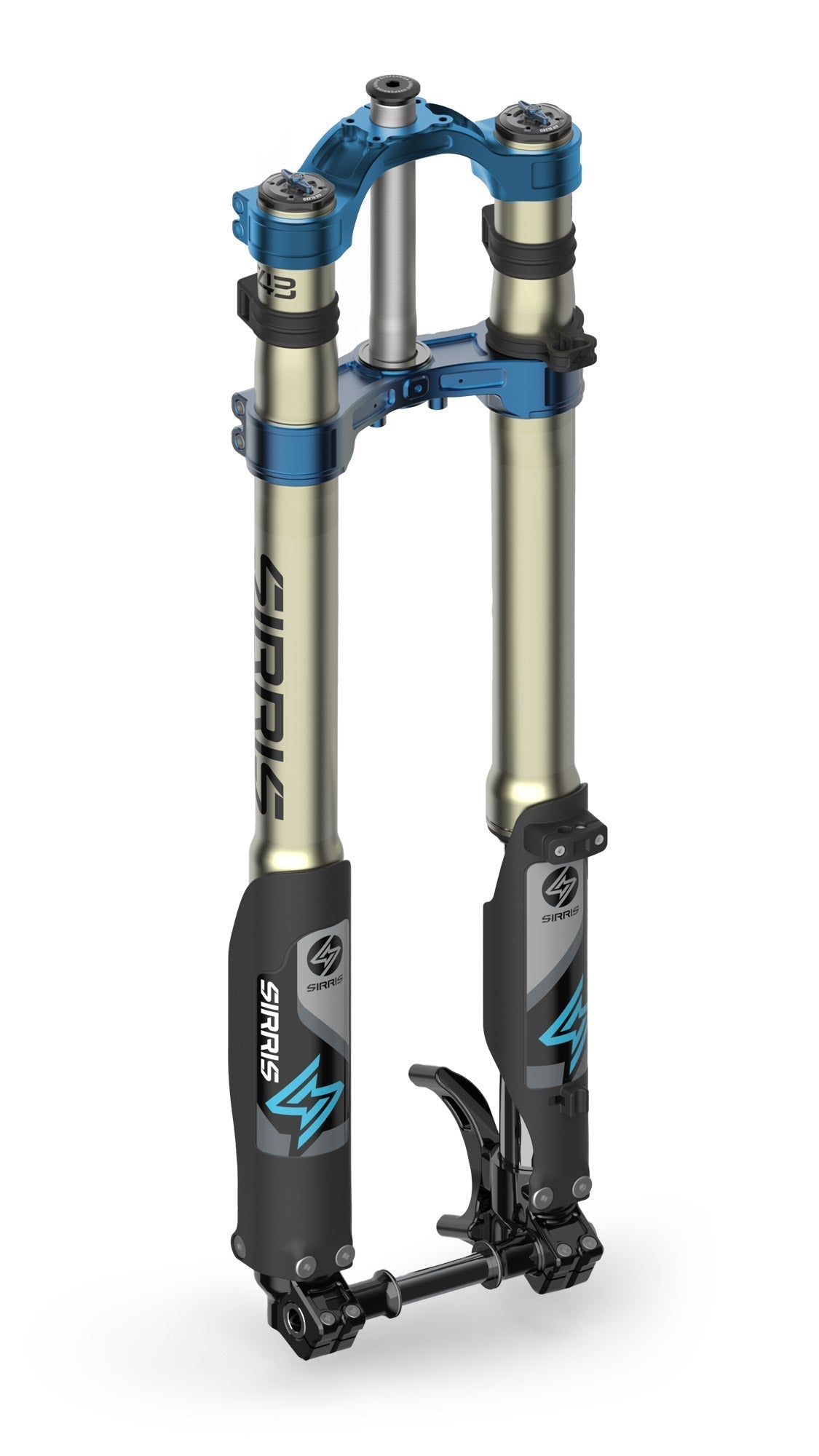

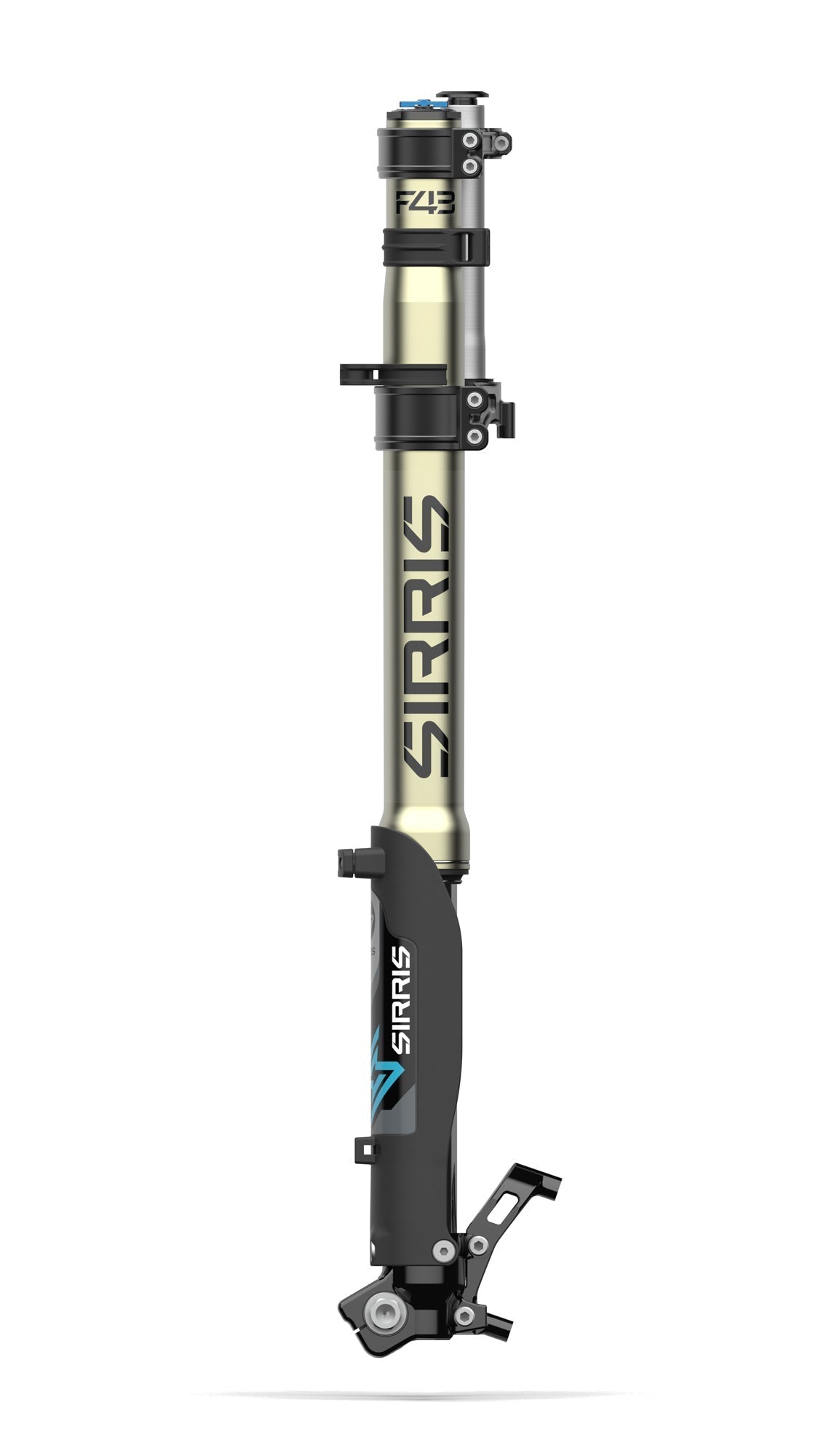

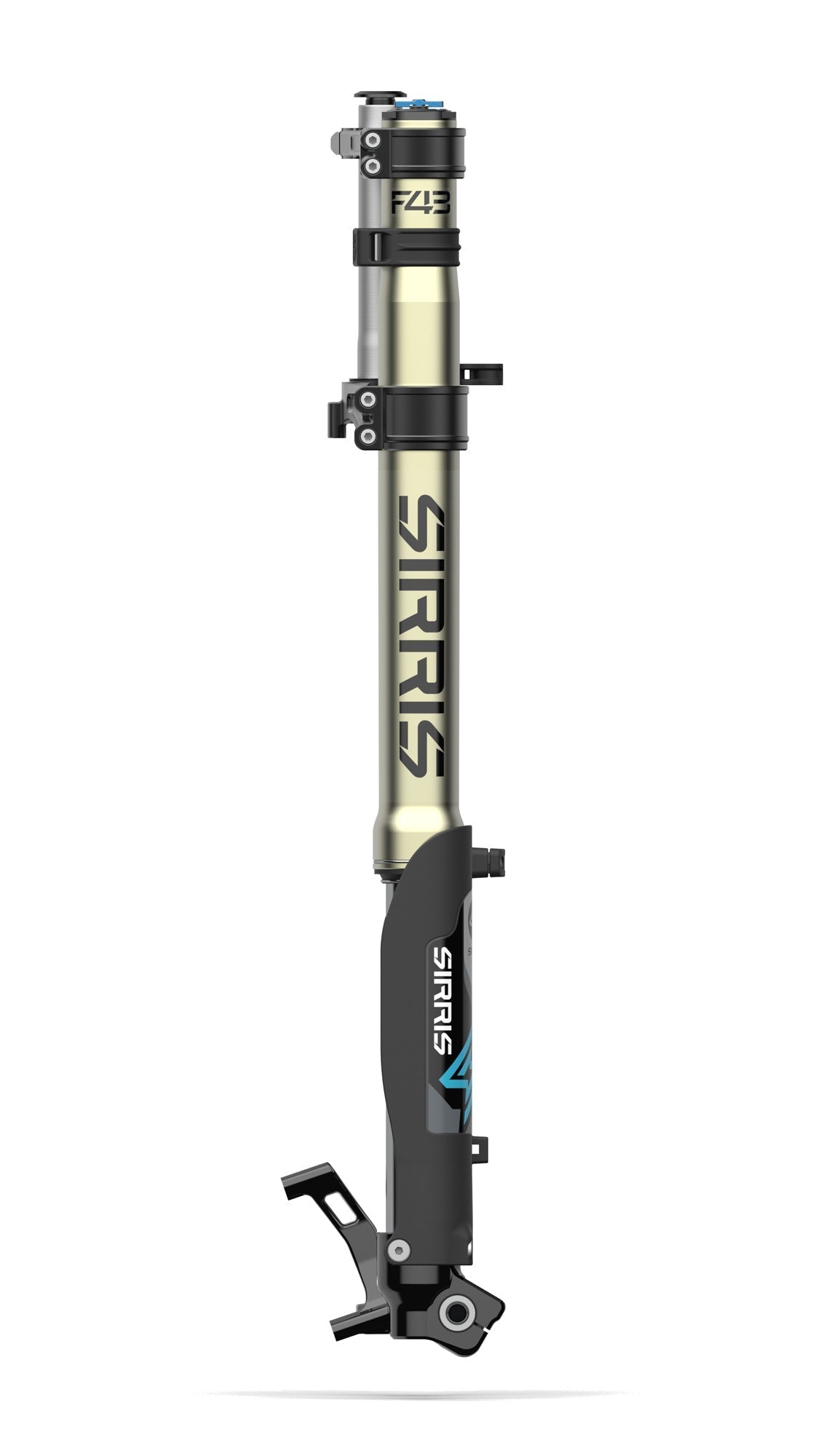

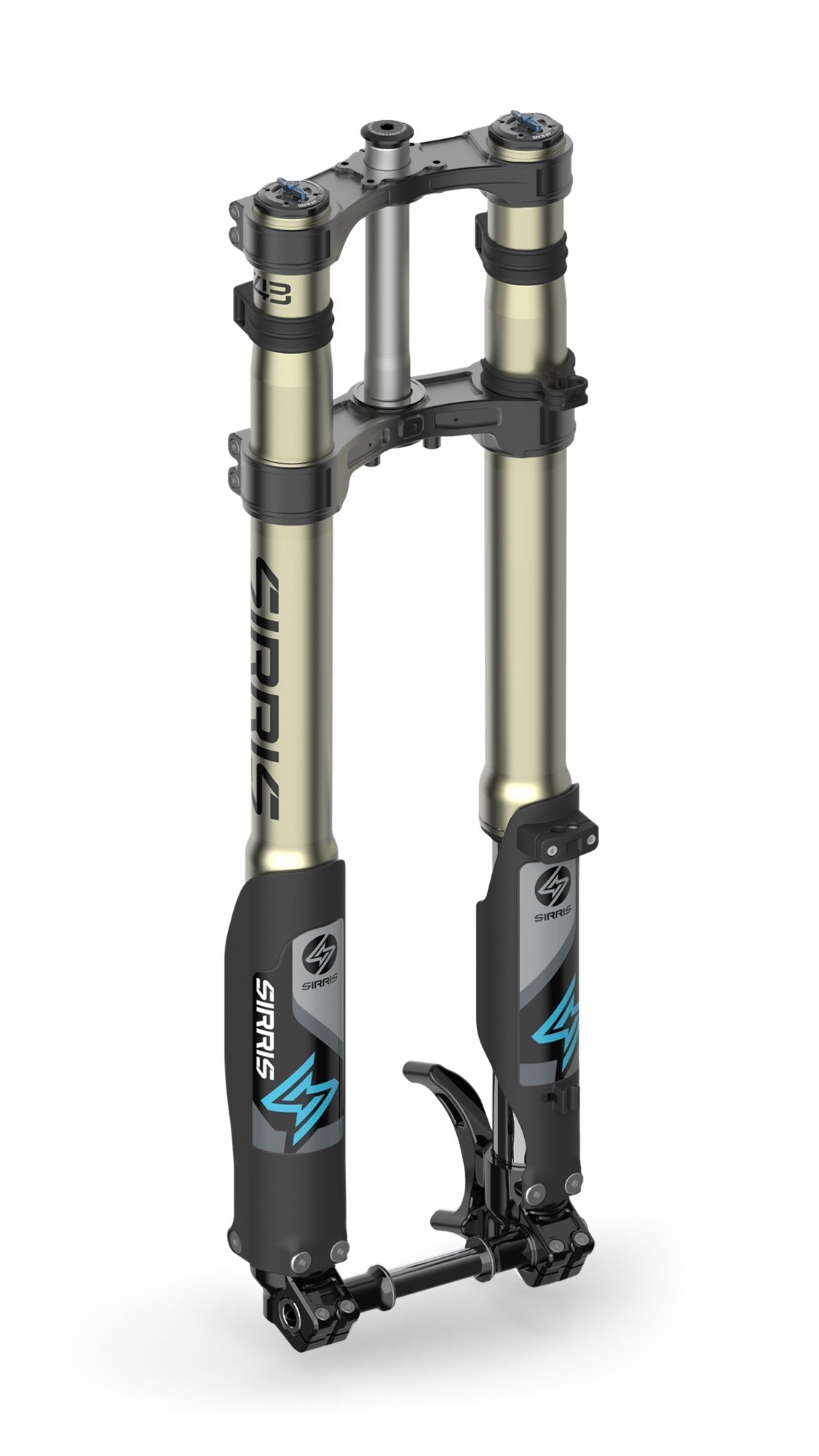

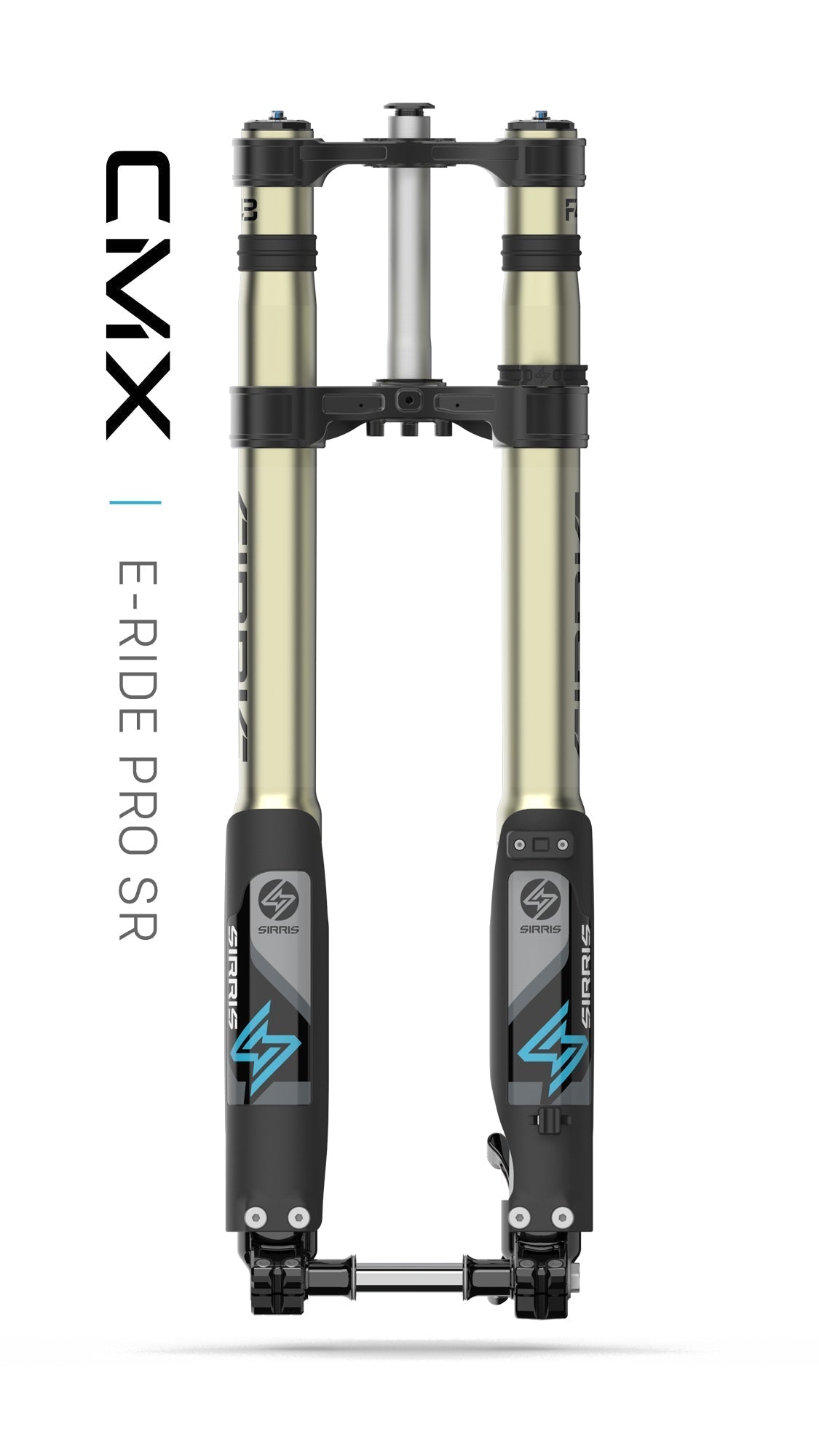

Sirris offers two weight ranges when selecting your CMX Tune F43 fork for E-Ride Pro SR. (Listed weight ranges are rider weight without riding gear on. 15 pounds of riding gear is calculated into the weight ranges)
140 lbs - 180 lbs (Medium = 4.0/4.0 springs)
180 lbs - 220 lbs (Heavy = 4.4/4.0 springs)
Fork spring rates listed above are left side/right side.
FORK SPECS:
Architecture
Upside down fork
Travel
220 mm
Free length
775 mm
(drop clamp option adds another 25mm of extended length)
Fork Spacing
178 mm - allows for unlimited tire choice (dirt or street)
Fork weight
4 kg per leg (driven by sturdy construction required for the forces and speeds encountered when pushing these bikes to their limits without compromising performance)
Stanchions
Ø43, high tensile steel with hard chrome
Outer tubes
Seamless 7050 aluminum, type 3 hard anodized coating
Drop outs
6061 aluminum, type 2 anodized coating
Replaceable caliper mount brackets allow for caliper and wheel upgrades
Axle
Ultra-high tensile hard chromed axle increases steering precision and confidence
Triple clamps
Billet 6061 aluminum, type 2 anodized coating, 2 color options (blue, black)

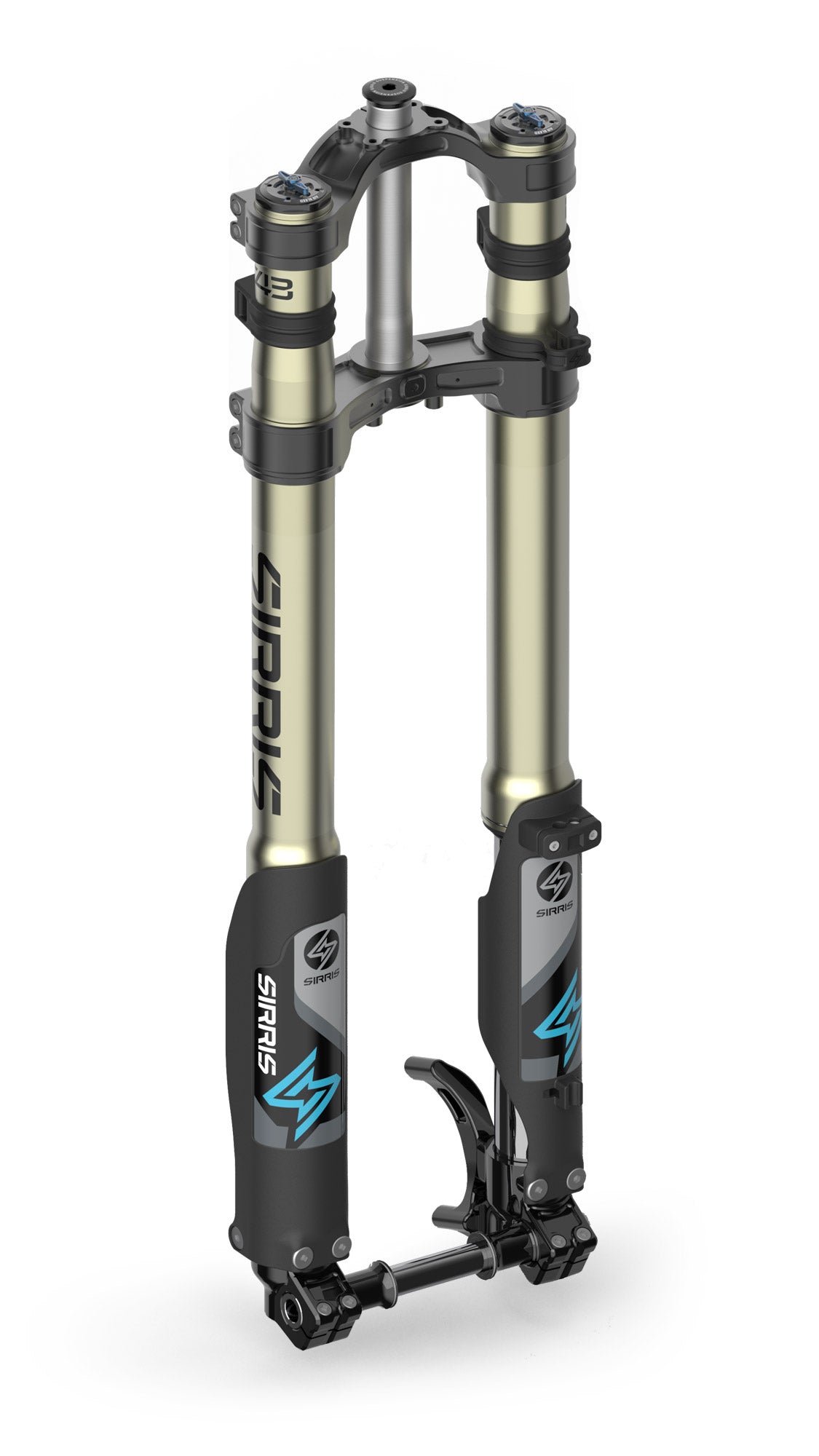

Optional drop clamp allows for 21” front wheel conversion
Steer tube
Seamless 7050 aluminum, type 2 anodized coating
Damping
Symmetrical, adjustable closed cartridge with spring backed modified IFP
Damper bodies
Seamless 7050 aluminum, type 3 hard anodized coating
Rebound
Dual side high tensile steel spring, adjustable
Adjusters
External tool-free compression, rebound adjustment
(rebound adjusted using tool)
Seals
NOK MX seals
Bushings
Daido MX bushings
Guards
High impact PP, 210-degree wraparound
