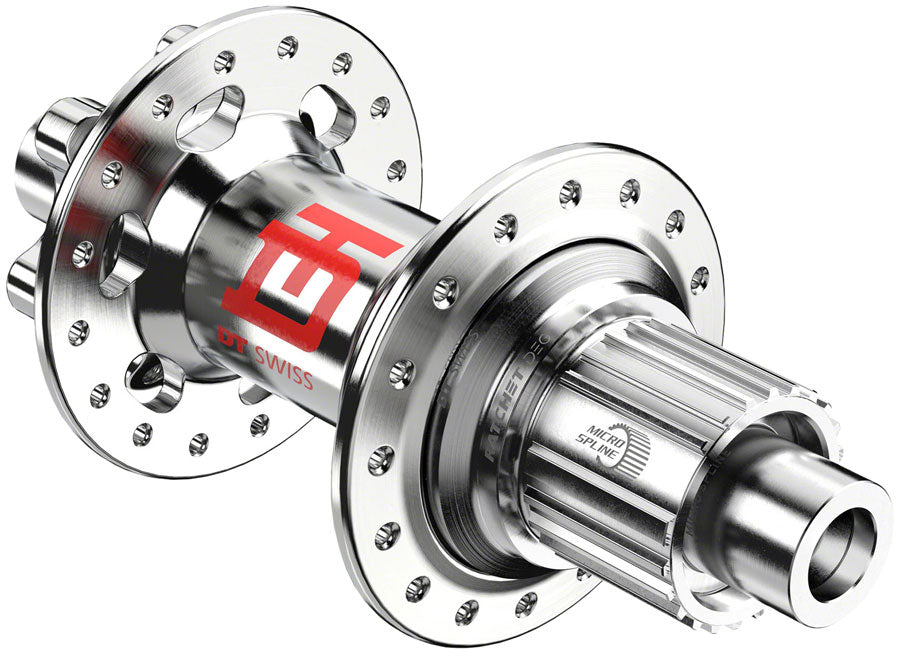

Dt swiss 240 MTB 3-Dec hub rear 32H 148

The Ratchet DEG System was designed by taking a different angle than the common high engagement freehub systems to deliver a smaller engagement angle and maximized reliability. The simultaneous full engagement of the ratchets provides a larger contact patch than pawl hubs and thus a more balanced load distribution resulting in higher reliability. Two enlarged ratchets with 90 teeth offer the smallest engagement angle ever made in the DT Swiss portfolio. On the trail this transmits into a different angle in the backlash. The small idle distance at the cranks allows for more direct acceleration like out of corners as well as the possibility to adjust the pedal position faster like when overcoming obstacles on a technical uphill trail.

Achieving a different engagement angle from what DT Swiss has done to date required a major adaptation to the drive side of the hub. The Ratchet DEG system and its new hub body allow the installation of size-optimized 90-tooth ratchets at 4 degrees

Made of steel the DEG ratchets are bigger than all the previous DT Swiss ratchets and aim to transmit the power of even the strongest riders for a long time and across a large contact surface

The innovative construction of the 240 DEG hub allows bearing replacement without special tools

Approved for use with ebikes (max. 32Km/h or max. 250W)

Rear Axle	12mm Thru x 148mm
Cassette Body Type	Shimano Micro Spline
Color	Silver
Skewer Included	No
Bearing Type	Sealed Cartridge
Designed for ebike	Yes
Defined Color	Silver
Spoke Interface	J-Bend
Hub Drilling	32
Hub/Brake Compatibility	6-Bolt Disc
Axle Size	12 X 148Mm
